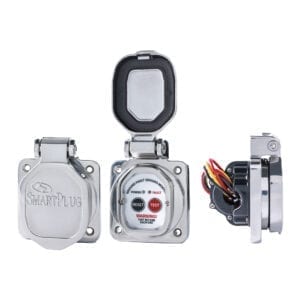

SmartPlug ELCI Sensors SmartPlug ELCI Sensors Call your local retailer for pricing.

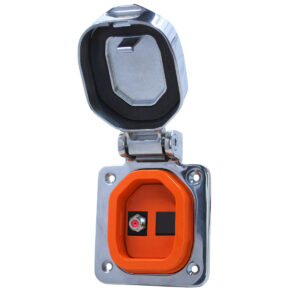

SmartPlug TV/Phone/Internet Inlets SmartPlug TV/Phone/Internet Inlets Call your local retailer for pricing.

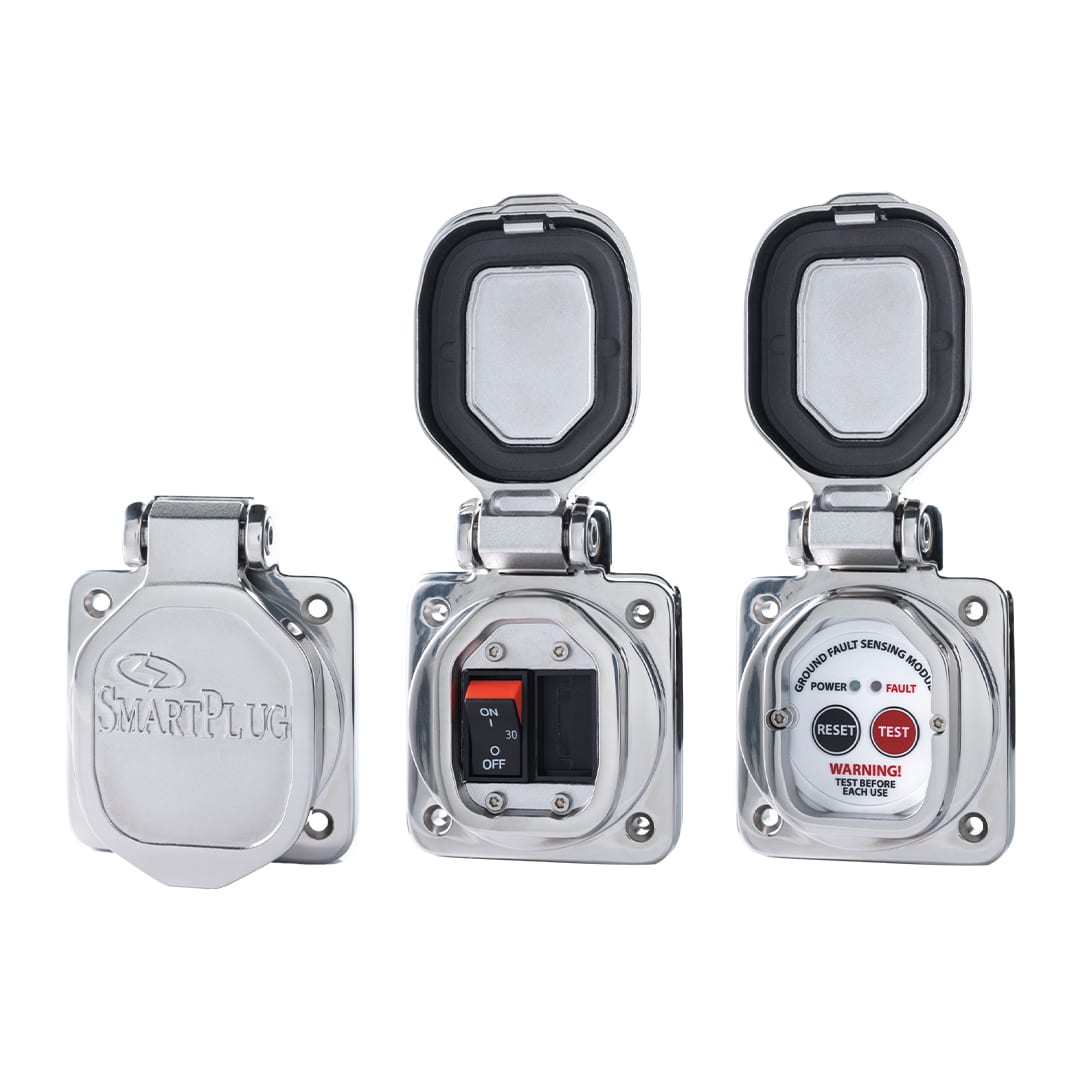

SmartPlug ELCI Sensor & Breaker Combo Kit

SKU: N/A

Call your local retailer for pricing.

  • Power and fault status indicators
  • Provides identification of a ground fault vs. short circuit trip
  • Chemical and UV resistant enclosure
  • Trip level of sensing device < 30mA (27mA nominal) at trip time of < 100mS (60mS nominal) per E-11
  • Protection range and operating voltage: 0-50 Amps, 120 VAC, 120/240 VAC
  • Unit operating temperature is -35 degrees C to +66 degrees C
  • Accommodates up to 3 wires, 6 AWG, with no twisting of the wires required
Where To Buy
Questions? Request a Call Back

Description

Warning: scandir(/home/jqm6d32qeokd/public_html/oldsite/wp-content/themes/shoptimizer/ ): failed to open dir: Permission denied in /home/jqm6d32qeokd/public_html/oldsite/wp-includes/class-wp-theme.php on line 1470

Warning: scandir(): (errno 13): Permission denied in /home/jqm6d32qeokd/public_html/oldsite/wp-includes/class-wp-theme.php on line 1470

Warning: Invalid argument supplied for foreach() in /home/jqm6d32qeokd/public_html/oldsite/wp-includes/class-wp-theme.php on line 1482
data-elementor-type="product-post" data-elementor-id="7048" class="elementor elementor-7048">
30 AMP WIRING DIAGRAM
50 AMP WIRING DIAGRAM

The LineGard™ PGFM product family provides ELCI (equipment leakage) ground fault sensing and is designed and manufactured by North Shore Safety, a leader in innovative safety products. The PGFM series operates in tandem with an Airpax™ LEL series, UL 489 listed circuit breaker, with shunt trip and auxiliary switch manufactured by Sensata Technologies.

The combined assembly of the PGFM and Airpax™ breaker meets the requirements of ABYC E-11 for ground fault protection and main shore power circuit protection. The PGFM constantly monitors the current balance of the conductors (wires / cables) supplying power to the load. When a ground fault of 27mA nominal (30mA max) occurs, the PGFM uses the LEL’s shunt trip coil to signal the breaker trip.
